Boat Dolly with 49 cm / 19.3 inch Polyurethane Wheels

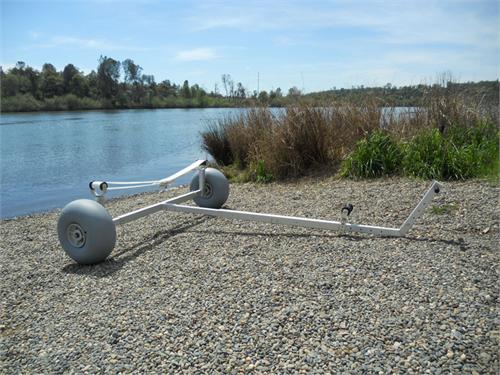

This is the most versatile boat dolly on the market today. One single adjustable frame is paired with five wheel choices to make the Wheeleez Boat Dolly (WZ1-BD) unique, user-friendly, and back-saving. Any terrain can be negotiated and a large boat weight range is covered. Use for Sunfish, small sailboats, fishing boats, kayak fishing equipment, and more. This Boat Dolly includes: 4– Main frame sections. 2– Assembled uprights w/ rollers. 1– Assembled Bow Stop Roller. 1– Cross-Strap. 2– Axles with Quick Clip Pins (QCP). 7– Wire Lock Pins (WLP). 1– Handle w/ foam grips. 1– Foam Bow Stop Bumper. 49 cm / 19.3" Wheeleez balloon wheels. NOT FOR ROAD USE.



Features:   Single frame adjusts three ways: length, width, and height.    Length adjusts to accommodate boats up to 19’ long.   Width adjusts to accommodate boats up to 7’ wide.   Height adjust vertical uprights to increase ground clearance.   Adjustable sling support strap cradles the boat hull.   Heavy-duty, marine-grade aluminum frame, anodized inside and outside.   Stainless Steel Hardware.   Weight without Wheels: 50 lbs   Payload up to 500 lbs.

Dimensions: Overall Frame Length: Minimum 96" Maximum 124". Tongue Length: Adjustable in 6.5” increments. Note: This measurement is taken from the most forward end of the Angled Tongue Section to the aft part of the Axle Cross Beam. Overall Frame Width: Minimum 60" Maximum 95".   Axle Cross Beam: Adjustable in 6” increments. Note that each side adjusts 6”; subsequently, adjusting both sides equals 12”. Beam Width: Minimum 54" Maximum 89" Axle Beam Width: Adjustable in 6” increments. Note: This measurement is taken from the inside edges of the left and right Upright Stanchion Rollers. Upright Stanchion Height: Minimum 14" Maximum 18" Strap Support Height: Adjustable in 1” increments. Note: This measurement is taken from the top of the Axle Cross Beam to the top of the Upright Stanchion Roller.

Materials: Frame:  Heavy-duty, marine-grade aluminum frame, anodized inside and outside. Pads:  PVC Foam Hardware:  Stainless steel 49cm / 19.3" Solid Foam Wheel. Tire: Polyurethane Hub: Polypropylene Bushing: Stainless steel balls in nylon reinforced housing
